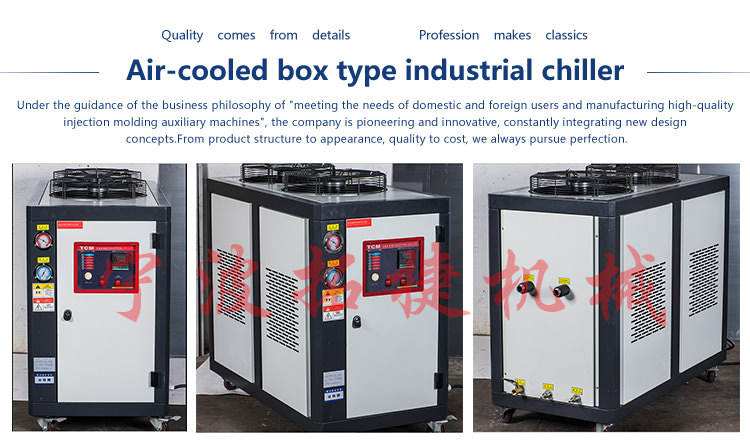

Industrial chiller

Product features：

■ Compressor with original import (COPELAND). Built-in safety protection device greatly reduces unit damage. Taiwan famous brand water pump, the United States, Mexico, Denmark, Japan and other imported refrigeration system accessories.
■ Shell and tube type condenser, stainless steel thick cargo tank type evaporator, clear and easy to maintain, and equipped with automatic water refill device (note: air-cooled production plate type radiator is suitable for water shortage, poor water quality areas).
■ The units above xc-20 adopt two or four sets of compressors, which can be applied in sections or at the same time to reduce unnecessary energy loss in specific circumstances.
■ Complete protection fault indication system, including (compressor overload protection, pump overload protection, high and low pressure protection, reverse phase lack phase protection).
■ Digital intelligent temperature controller, accurate control of water temperature 5 degrees -35 degrees.

Product Details

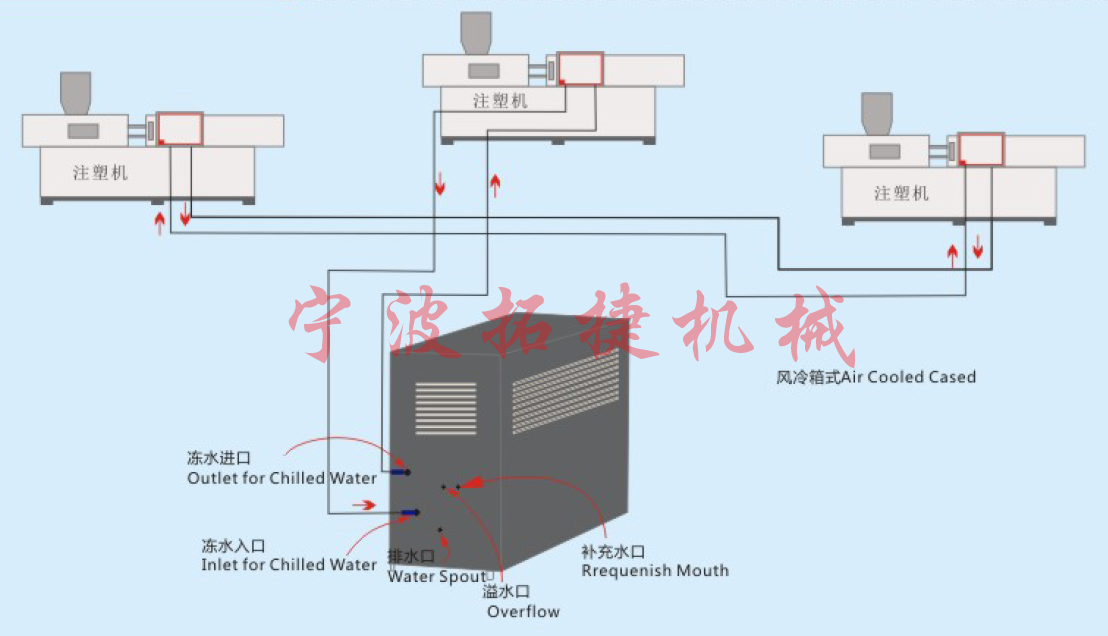

● Schematic diagram of piping for industrial chiller

■  Industrial chiller is specially designed for the plastics industry. Can effectively improve the production efficiency of the machine, improve product quality and profit.
■  Applicable machinery: oil temperature, ultrasonic wave, high - profile wave mechanical cooling, injection molding, plastic hollow molding cooling, plastic extrusion molding cooling.
■  Choice of accessories: 1. Timing switch; 2, large water filter element; 3, leakage protection switch; 4. Cooling water tower and water pump.

● Technical parameters

Remark:
In the table 1, refrigerating capacity calibration conditions: freezing water inlet temperature is 12 ° C, the water temperature of 7 ° C, evaporation temperature 2 ° C, condensation temperature of 40 ° C;
2, when the environment temperature is lower than 2 ° C or use for a long time, should be no net water accumulation in the machine, in case of brass frost heave;
3. Specifications and performance are subject to change without prior notice.
